Manufacturers, Suppliers And Exporters Of Air Tray Dryer

Tray dryer
Tray dryer
Tray dryer
Tray dryer

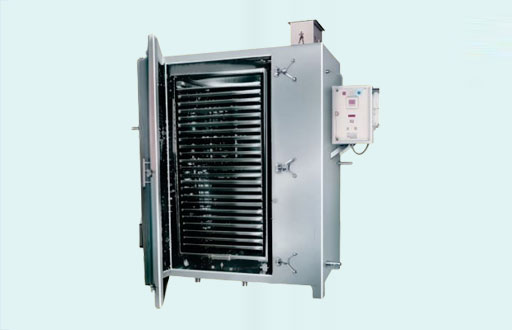

Air Tray Dryer is used for the best drying results in conventional process. It consists of a double-walled cabinet with one or two doors. The gap between two walls is filled with light resin-bounded fiberglass wool insulation material to avoid heat loss. The doors are provided with gaskets to avoid air leakages from the front side of the door. Stainless steel trays are placed inside the chamber, cGMP model dryers are designed to dry specific products Std. chamber size: to hold 6, 12, 24, 48, 96 and 192 trays. Lab model for 5-10kgs. available Standard, cGMP models available with SS304/SS 316 internals and externals.

Construction: heavy duty with single body design making it cGMP complaint easy for cleaning and up keeping of the equipment

• Model - 10 Ltrs. to 300 Ltrs. Capacity.
• Electric / Steam Heating Arrangement.
• Available cGMP and Lab Model.

Technical Specifications Tray Dryer
Model TD-6 TD-12 TD-24 TD-48 TD-96
Loading Capacity 6 Tray 12 Trays 24 Trays 48 Trays 96 Trays
No. of Doors One One One One Two
No. of Blowers One One One One Two
Motors H.P. 0.5 0.5 0.5 1.0 1HP x 2 Nos.
Electrical Heating Load 4.5kw 6.0kw 9.0kw 12.0kw 21.0kw
Steam Heater No. of coils. 1 2 2 2 2
Steam Pressure 3.0 kg / cm2 3.0 kg / cm2 3.0 kg / cm2 3.0 kg / cm2 3.0 kg / cm2
No of Trolleys Rack System Rack System Rack System One Two
Tray Size 812 x 406 x 32 812 x 406 x 32 812 x 406 x 32 812 x 406 x 32 812 x 406 x 32
Trolley Dimension Fixed Racks Fixed Racks Fixed Racks 840 x 8800 x 1770 840 x 8800 x 1770
